Cross T Grid Making Machine for Lay in Metal Ceiling and Gypsum boards Installation

Description

Cross T Grid Making Machine for Lay in Metal Ceiling and Gypsum boards Installation

Cross T grid machines are usually purchased together with main T grid machines as a complete set, which are widely used in the installation of ceiling suspension systems.

They are compatible with various panel types, including lay-in and lay-on metal ceiling panels, gypsum boards, open cell ceilings and other modular ceiling systems, featuring easy installation, convenient inspection and maintenance.

The cross T components are commonly produced in two standard sizes: 600mm and 1200mm.

The punch unit is equipped with quick-change dies, allowing flexible and fast switching between different specifications and sizes.

Parameters of Ceiling T Bar System:

Main T: 26x24mm,24x24mm

Material: Galvanized Steel

Thickness: 0.3/0.35mm

Ceiling Roll Forming Machine Working procedure & required equipment:

The complete Lay in metal ceiling hanging system includes three machines: Main T Grid, Cross T grid and wall angle.

1. Ceiling Main T Grid:1. Ceiling Main Tee Grid Machine:
2 x Decoiler – Roll Forming – Auto Punching & Cutting – Hydraulic System – Run Out Table

2. Ceiling Middle Cross Tee Grid Machine:
2 x Decoiler – Roll Forming – Auto Punching & Cutting – Hydraulic System – Run Out Table

3. Ceiling Wall Angle Machine:
Decoiler – Roll Forming – Auto Punching & Cutting – Hydraulic System – Run Out Table

Ceiling machine, ceiling T bar machine, ceiling grid machine, false ceiling machine

Details of each component of T Bar making machine:

Uncoiler: 2set, manual decoiler, loading 1.5Ton

LMS T bar ceiling roll forming machine comes with two high-efficiency decoilers for galvanized and color-coated steel coils. Roller-driven design ensures accurate alignment with the main forming unit. We can customize decoiler inner/outer diameters and load capacity as per your requirements.

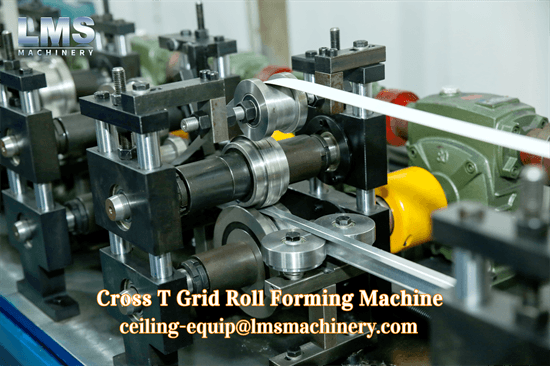

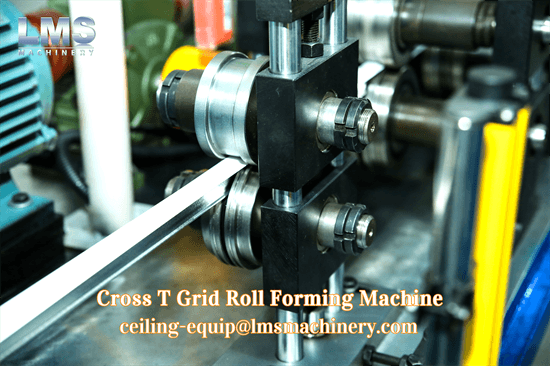

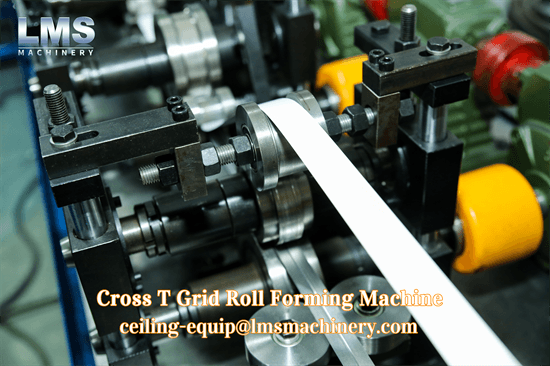

Roller: 18 Rows Material:Cr12 ,shaft diameter:Φ40mm

LMS T-bar ceiling roll forming machine rollers are made of Cr12 steel with hardness HRC 55–56°, ensuring forming accuracy within 0.05 mm. The main shaft uses heat-treated 45# steel for high stability and durability. Protective shields are available for enhanced safety. Production speed reaches up to 30 m/min, greatly improving efficiency.

Transmission: 5.5kw main motor with reducer. Gear transmission
Side plate: Thickness 25mm, grinding six-sided, high-precision boring from processing
Feeding Positioning: Manual positioning, flexible adjustment at both ends

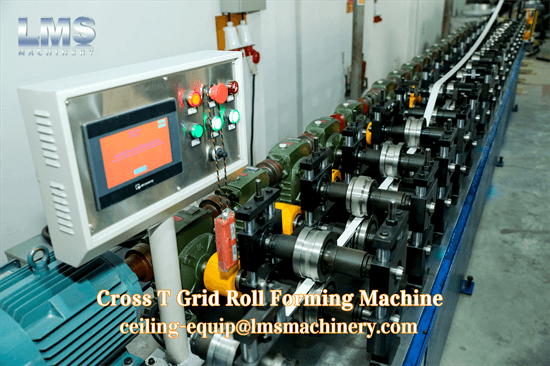

PLC: PLC programming controller

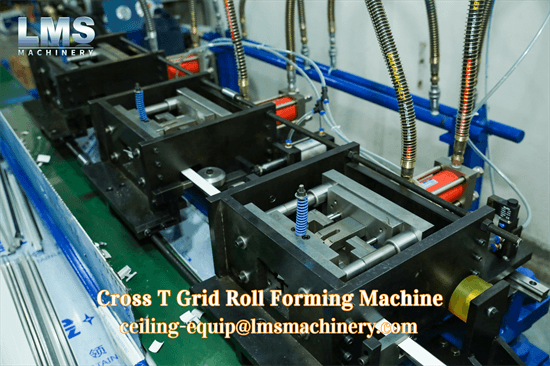

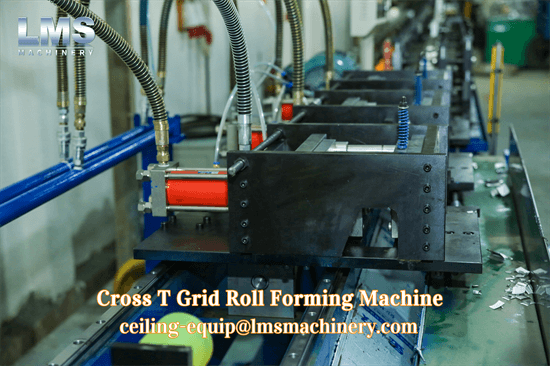

Stamping punch die: Material:10 Sets， SKD11

LMS ceiling T-grid roll forming machines can be fitted with multiple punching dies. Made of SKD11 steel with hardness HRC 58–60 and precision-machined, they ensure efficient and stable production.

The cutting system adopts flying shear for non-stop continuous cutting, with accuracy within 0.1 mm to meet strict production demands.
