INTEGRATED PUNCHING + CEILING LINE
Flat 600x600mm Metal Ceiling Panel Production Line & Metal Punching Line
From coil to finished ceiling — perforated, non‑perforated, acoustic, decorative. Servo‑controlled punch press with custom molds,
integrated winding, hydraulic bending. Ideal for architects, contractors, and volume manufacturers.
⏺ Metal Punching Line – High Precision & Flexibility
Specialized automated line for perforated metal plates (ceilings, curtain walls, facades). Core advantage: punch press + mold coordination for burr‑free holes, consistent spacing, and high throughput.

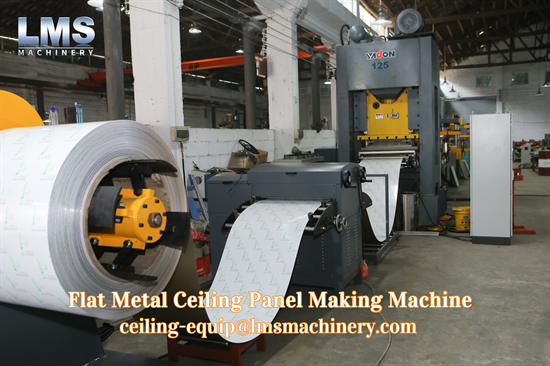

🎯 NC Punch Press
- Advanced numerical control for precise positioning
- Stable stamping, minimal vibration
- Custom hole patterns: round, square, decorative
- Hole size down to Ø1.8 mm (or as required)
🔧 Customized Molds
- Designed for specific hole type, spacing, pattern
- Eliminates uneven spacing & poor edge quality
- Long mold life, reduced production cost
- Quick change for different perforation styles
📦 Flexible Configuration
- Optional winding device for continuous coil processing
- Seamless integration with hydraulic press, forming machine, bender
- Suitable for flat panels, curved plates, special shapes
- Material: aluminum coil, steel coil (various alloys)
✅ Produces high‑quality perforated sheets:
⬜ Metal Ceiling Line – From Coil to Finished Ceiling Panel

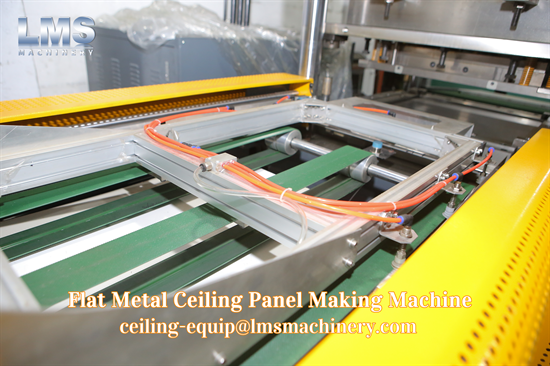

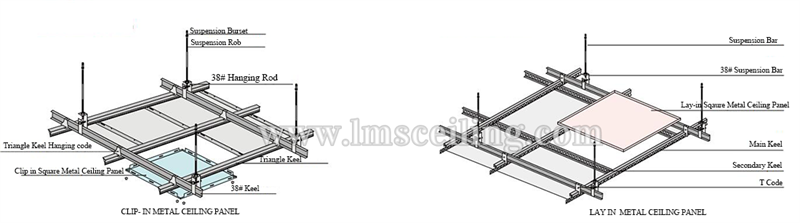

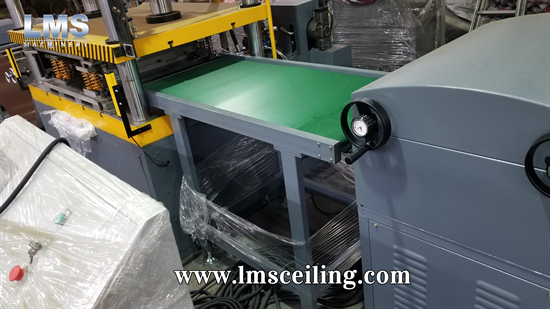

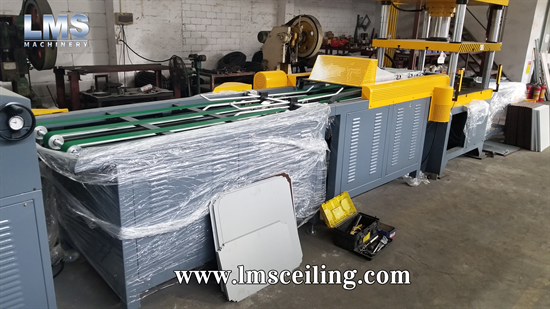

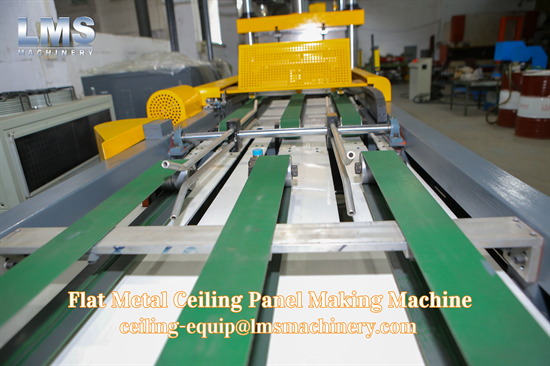

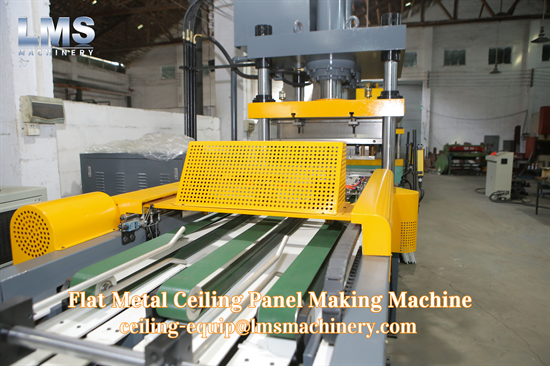

Built on the punching line core, extended with forming, bending, corner notching, flipping and run‑out. Specifically for 600x600mm ceiling tiles (clip‑in / lay‑in) and strips.
📐 Ceiling Line Specs
- Material: Aluminum / steel coil (0.4–0.55 mm, custom)
- Panel size: 600×600 mm (as per drawing, also 1200×600)
- Perforation: Ø1.8 mm or custom patterns

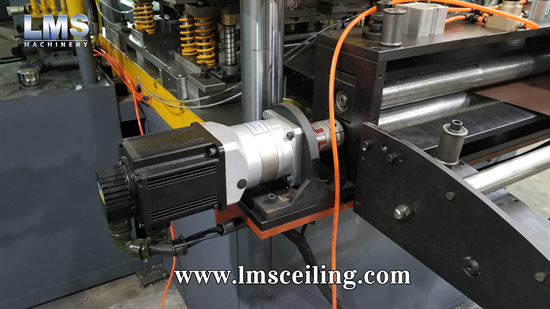

- Control: YASKAWA servo, PANASONIC PLC

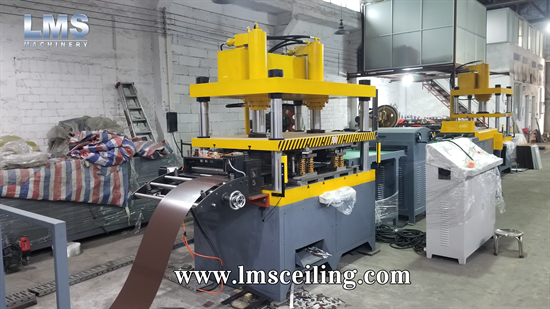

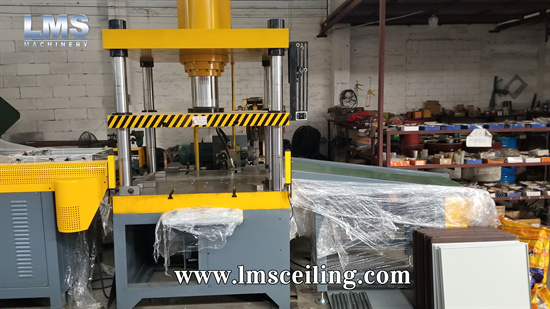

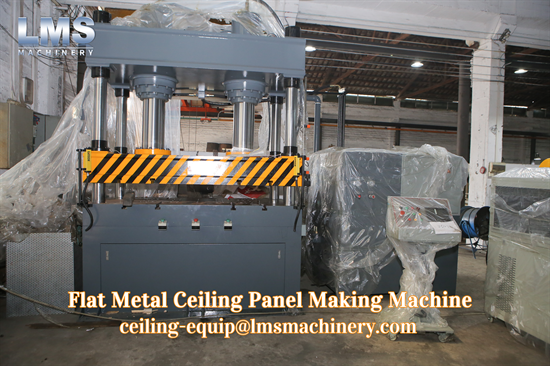

- Press tonnage: notching 40T/80T, bending 120T
- Tooling: corner cutting + bending tools included
- Optional: winding device for coil fed continuous run
🔩 Integrated Processes
- Perforated & non‑perforated on same line
- Acoustic panels (holes + back foil option)
- Flat / micro‑perforated / decorative strips

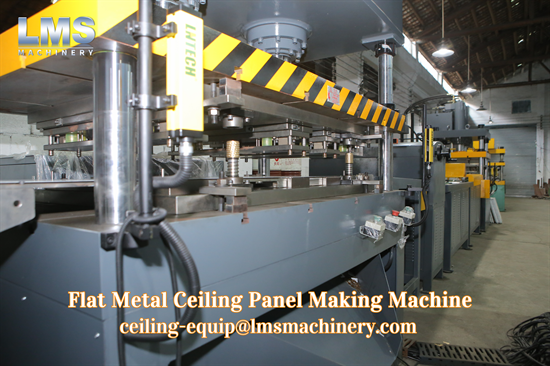

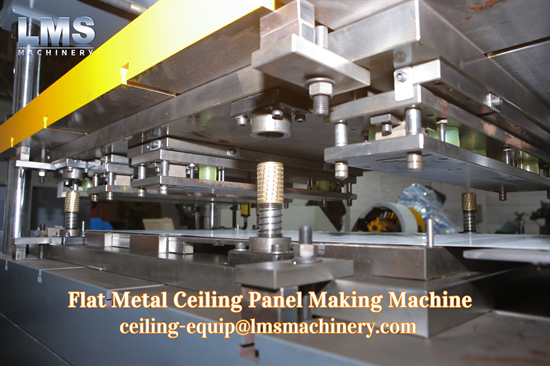

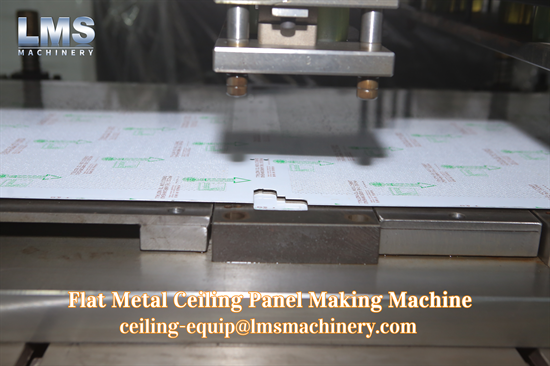

- Hydraulic press for corner notching & cut‑off

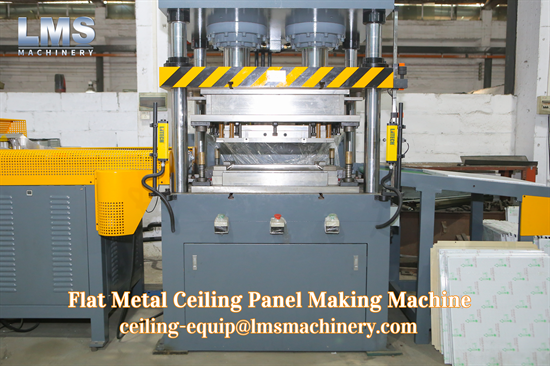

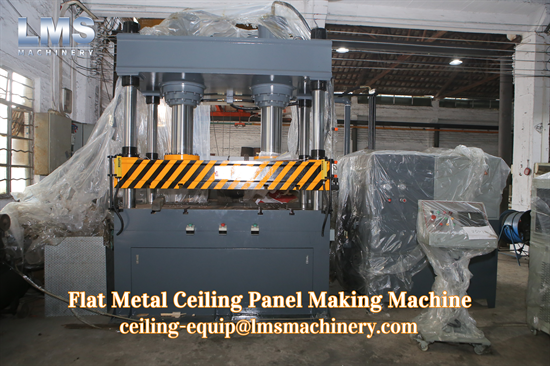

- Bender for edge folding (clip‑in / lay‑in profiles)
- Minimal manual handling – from coil to stack
🏗️ Applications & Finishes

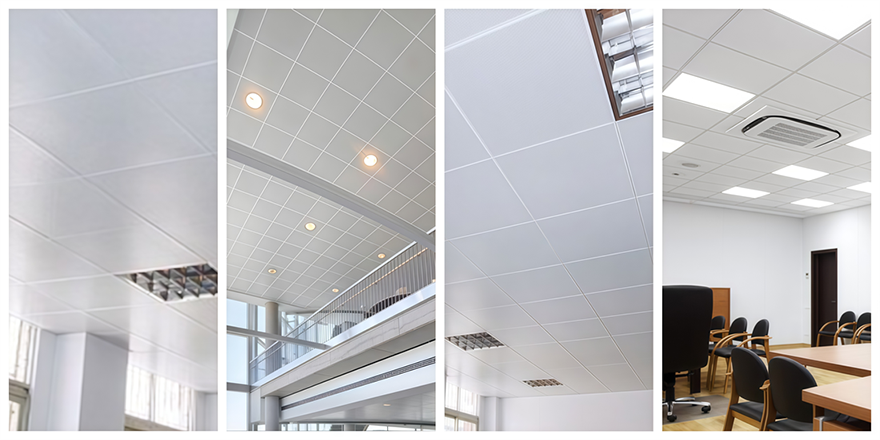

Ideal for office buildings, airports, shopping malls, hospitals, clean rooms. Panels can be powder coated, anodized, brushed – any RAL color. Lightweight, fireproof, moisture resistant, easy to clean.

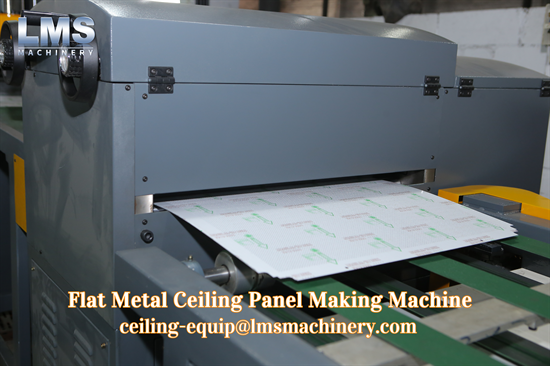

📸 Equipment Overview
⚡ Two lines – one integrated solution
From high‑precision punching to final ceiling bending. Customized for 600×600 flat & perforated panels. YASKAWA servo, PANASONIC PLC, quick mold change.
non‑perforated mirror finish
acoustic backing option
📩 Contact LMS for line layout, tooling design, and sample production.
