LMS High Speed Open Cell Ceiling Making Machine 30m/min
high speed grilyato open cell ceiling machine
LMS High Speed Grilyato Ceiling Roll Forming Line efficiently produces U10 suspended open cell ceiling profiles at a maximum speed of up to 30 meters per minute.
The complete line includes a decoiler, leveler, hydraulic punching & cutting unit, conveyor system, main roll forming machine, run-out table, and electric control system.
High Speed Grille Ceiling Roll Forming MachineStructure:
Decoiler 1set
Leveler 1 set
Hydraulic Punching and cutting unit 1 set
Conveyor 1set
Roll forming machine 1 set
Run-out table 1 set
Electric control system 1 unit
Detail Photos of LMS High Speed Grilyato Open Cell Ceiling Machine:

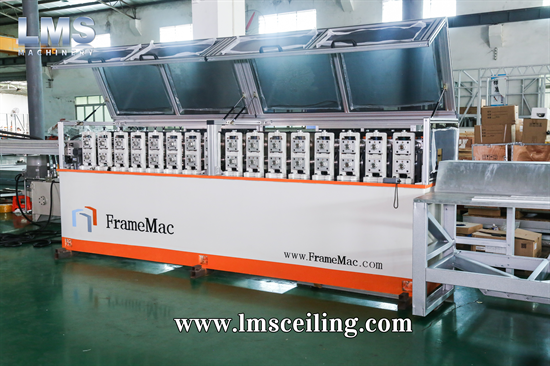

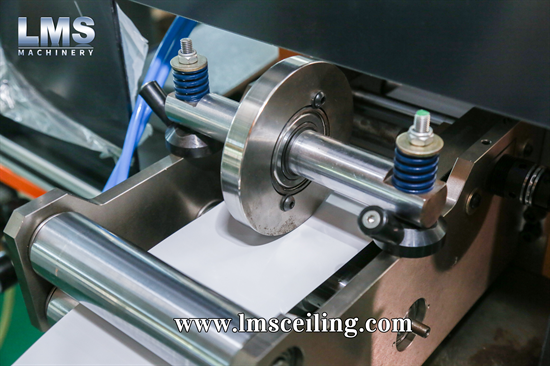

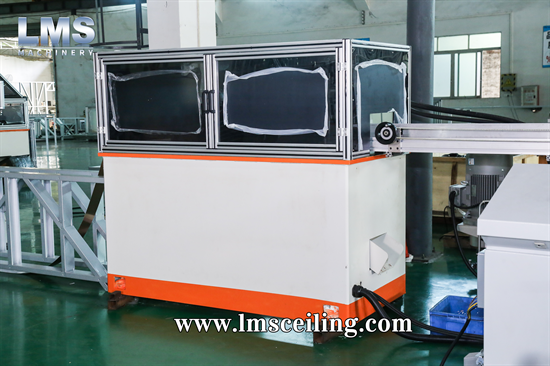

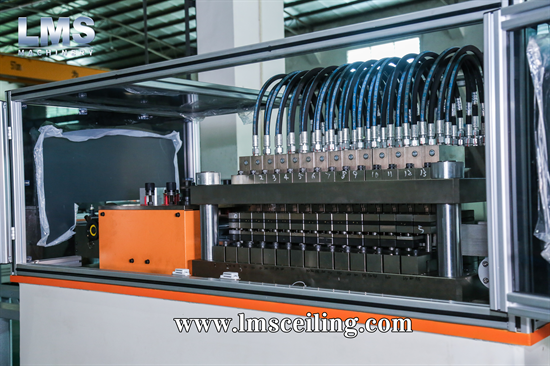

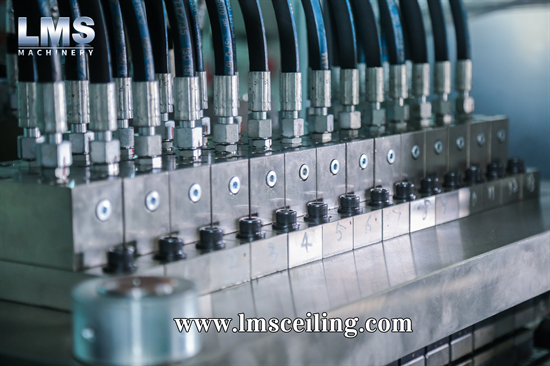

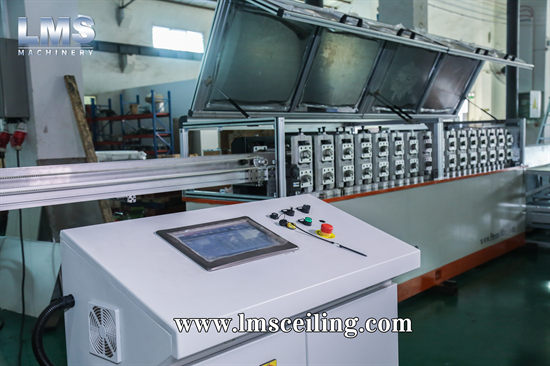

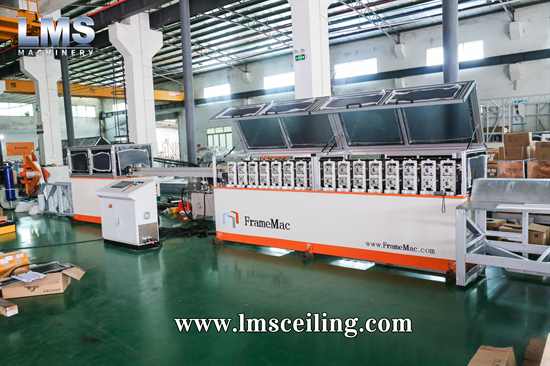

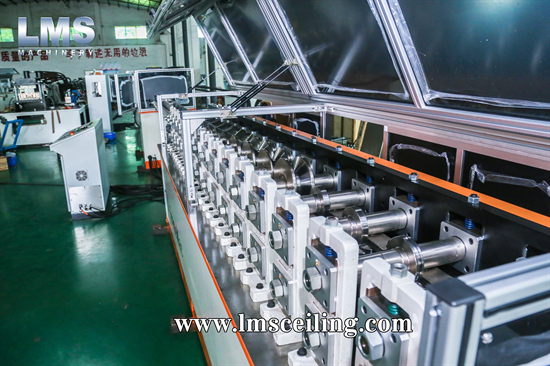

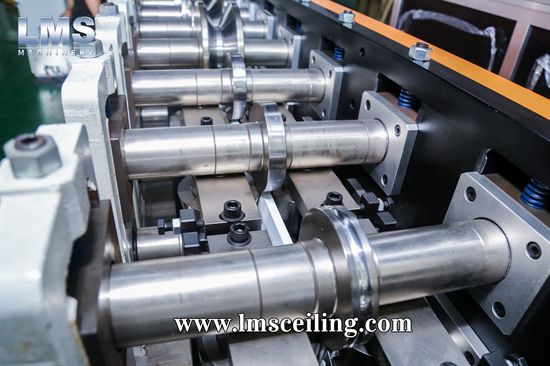

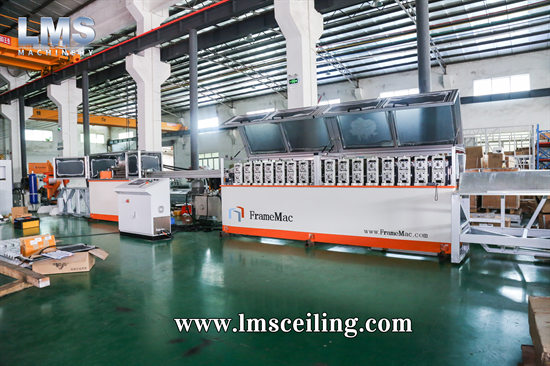

LMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine with protective coverLMS high speed grilyato open cell ceiling machine 30 meters per min feeding deviceLMS high speed grilyato open cell ceiling machine 30 meters per min punching unitsLMS high speed grilyato open cell ceiling machine 30 meters per min punching unitsLMS high speed grilyato open cell ceiling machine 30 meters per min punching unitsLMS high speed grilyato open cell ceiling machine 30 meters per min electric control boxLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machineLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine with protective coverLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine

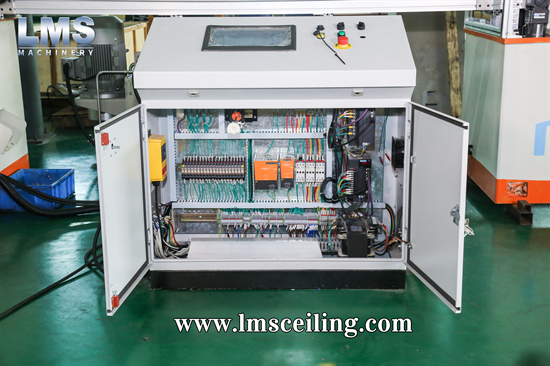

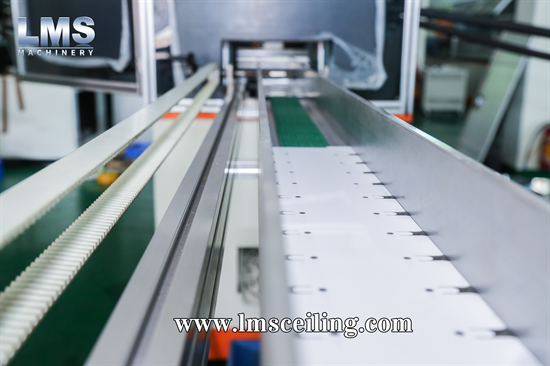

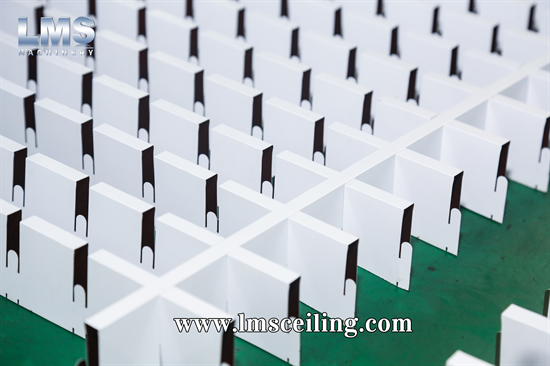

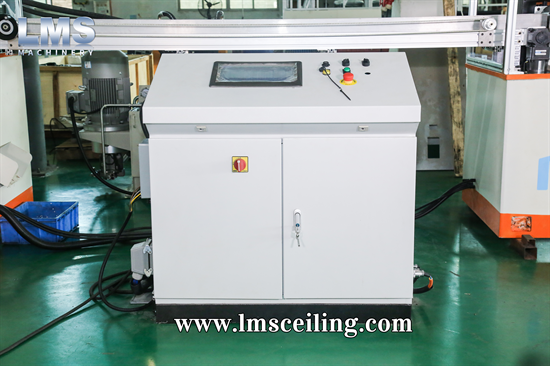

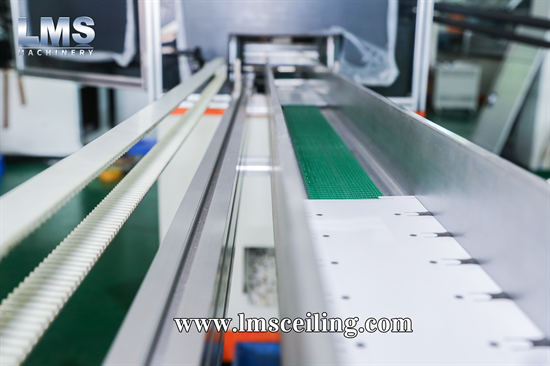

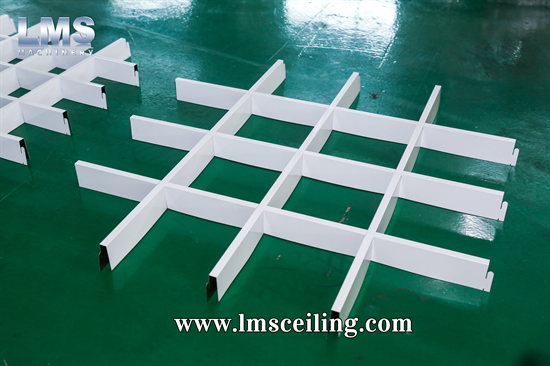

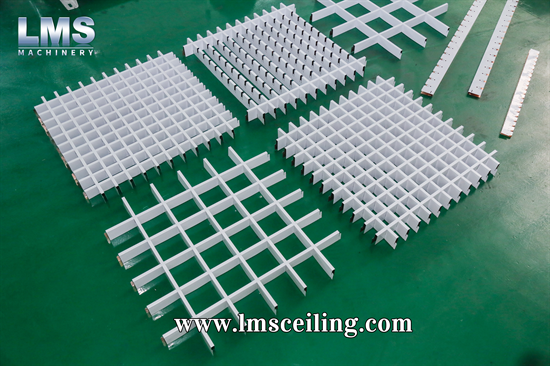

LMS high speed grilyato open cell ceiling machine 30 meters per min run out tableLMS high speed grilyato open cell ceiling machine 30 meters per min run out tableLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine finished profileLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine finished profileLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine finished profileLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine electric control boxLMS high speed grilyato open cell ceiling machine 30 meters per min roll forming machine electric control box
Technical parameter of High-speed open cell ceiling machine:
Material: Aluminum /steel
Material thickness: 0.25-0.35mm
Profile size: U10×27 / U10×40 MM (Top & Low Profiles)
