Description
38x12mm Carrying Channel Machine (Light Steel Keel Equipment)
The 38x12mm Carrying Channel Machine is a high-efficiency, fully automatic light steel keel production equipment, specially designed for manufacturing 38x12mm standard carrying channels (light steel keels) — the core load-bearing component widely used in building interior decoration and partition systems. It integrates full automation, high speed, and precision, perfectly meeting the mass production needs of construction material manufacturers.
Core Specifications & Performance of LMS Ceiling Keel 38x12mm machine:
-
Product Dimension: Specialized in producing 38x12mm carrying channels (light steel keels), with adjustable design available to adapt to slight dimension modifications according to customer requirements.
-
Material Adaptability: Mainly applicable to galvanized steel coils, color-coated galvanized steel coils (commonly used in interior decoration for corrosion resistance and aesthetics), and cold-rolled steel coils — the most widely used materials for light steel keels in the construction industry.
-
Sheet Thickness Range: 0.4-0.8mm, which covers the common thickness specifications of 38x12mm carrying channels for residential, commercial and industrial buildings (0.6mm for general partitions, 0.8-1.2mm for load-bearing partitions).
-
Production Speed: 80-100m/min, fully automatic continuous production, no manual intervention in the whole process (from decoiling, roll forming, punching to cutting), greatly improving production efficiency and reducing labor costs.
-
Automation Level: Full automatic control system, equipped with PLC touch screen operation, easy to set parameters (length, speed, quantity). It realizes one-key start, automatic fault alarm and automatic shutdown, simple operation and low professional requirements for operators.
38x12mm Carrying Channel Application:
The 38x12mm carrying channels (light steel keels) produced by this equipment are widely used in various building scenarios, including:
-
Interior partition walls and suspended ceilings of residential buildings, commercial offices, shopping malls and hotels;
-
Load-bearing support for gypsum boards, metal ceiling panels, decorative panels and other finishing materials;
-
Partition systems in industrial plants, clean workshops and other places that require light weight, high strength and easy installation
Machine Structure:

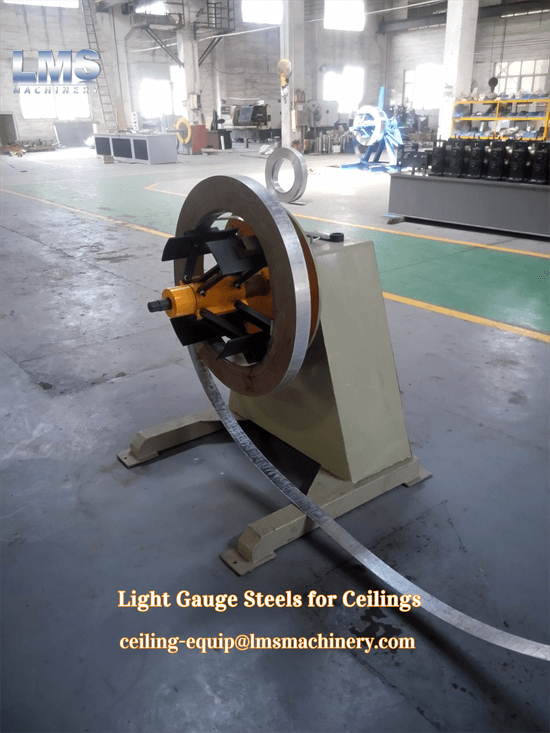

- Decoiler

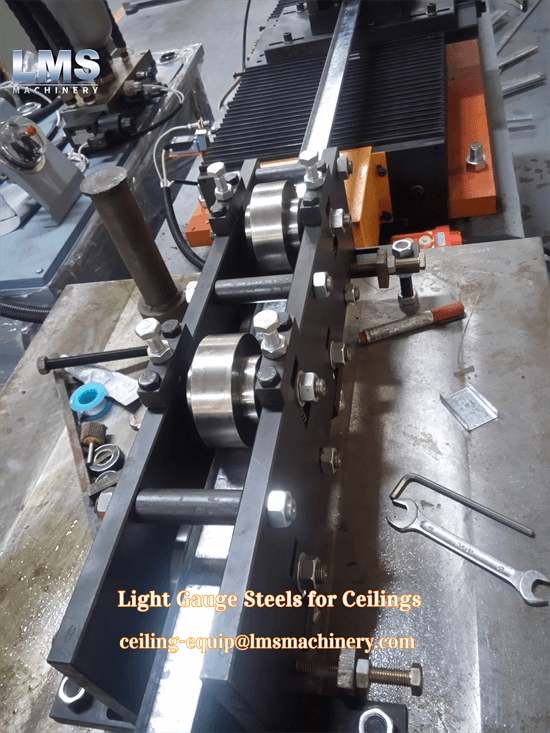

- Leveling device
- Roll forming main mahcine

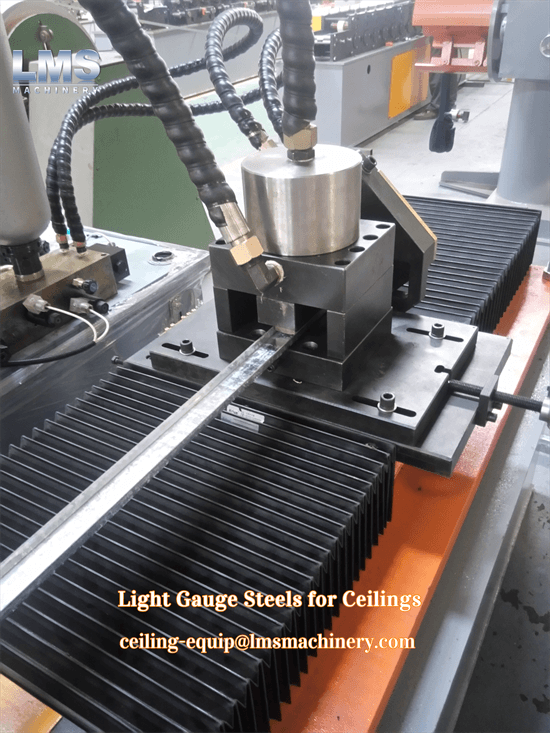

- Flying shearing
- Run out table

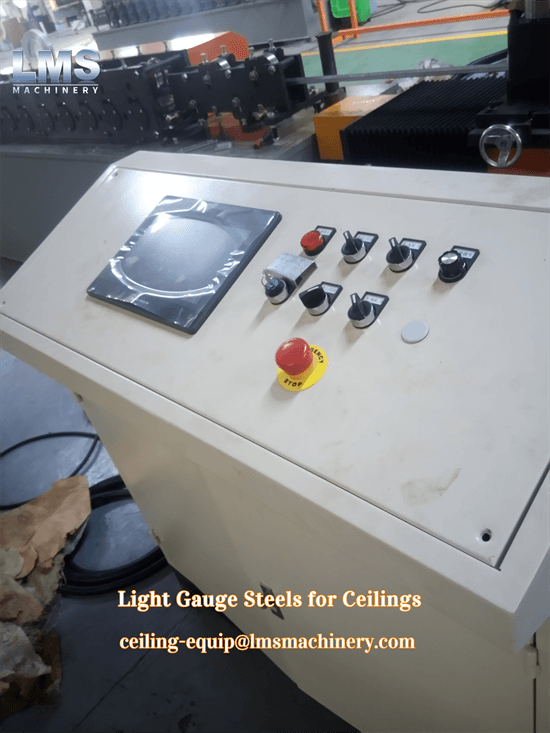

- Electric control system
Detail Machine Photos:
LMS Carrying Channel Equipment Advantages
-

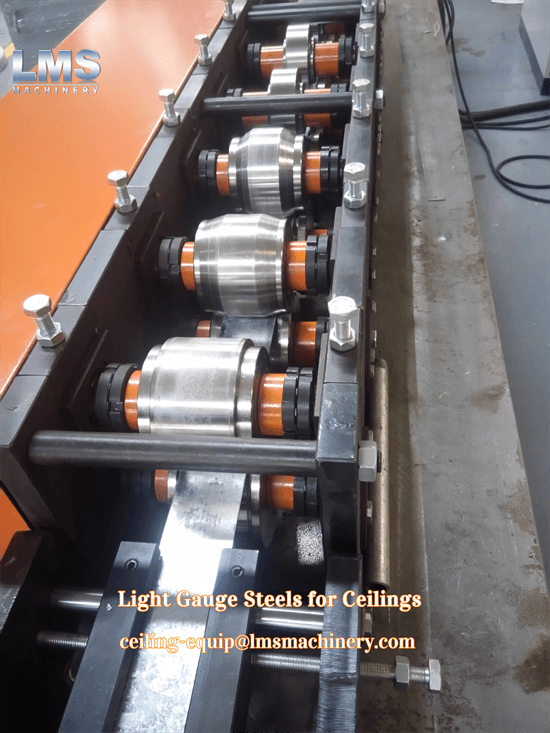

High Precision: The roll forming rollers are made of Cr12mov material (hardness HRC 58-60), precision milled, ensuring the keel dimension tolerance within ±0.5mm, smooth surface and no deformation.
-
Stable Performance: The main shaft is made of heat-treated 45# steel, with strong load-bearing capacity and long service life; the decoiler is roller-driven, ensuring precise alignment with the main forming machine.
-
Cost-Effective: Full automatic production reduces labor input, high speed shortens production cycle, and the equipment is easy to maintain, helping customers reduce overall production costs and improve market competitiveness.
-
Customizable: We can customize the die set, punching position and cutting length according to customer-specific requirements, adapting to different construction scenarios and usage needs.
