Linear Strip Ceiling Panel Roll Forming Machine

Description

Linear Strip Ceiling Panel Roll Forming Machine

LMS linear strip ceiling roll forming machine is a professional metal ceiling production line designed to manufacture high-quality linear strip ceiling panels in various sizes and profiles, including R84, C-type, and S300 series. We provide customized linear ceiling making machine solutions based on your specific product requirements and dimensions.

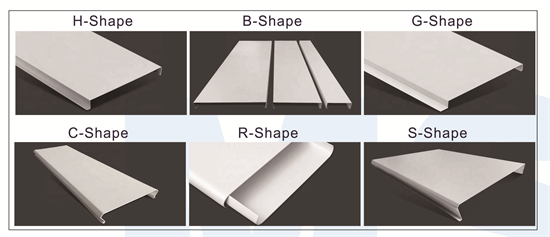

Main Types of LMS Linear Ceiling Making Machinery:

• U-shaped Slatted Baffle Ceiling Roll Forming Machine (Auto width & height adjustable)
• C-shape Linear Suspended Ceiling Roll Forming Machine
• S-shape Linear Ceiling Roll Forming Machine
• H-shape Linear Suspended Ceiling Roll Forming Machine
• G-shape Linear Ceiling Roll Forming Machine
• Round Tube Ceiling Roll Forming Machine
• V-shape Strip Ceiling Roll Forming Machine
• Aluminum Louver Ceiling Roll Forming Machine
• Linear Strip Ceiling Carrier Roll Forming Machine

Linear Strip Ceiling Machine Structure & Working Flow:

• Hydraulic Uncoiler

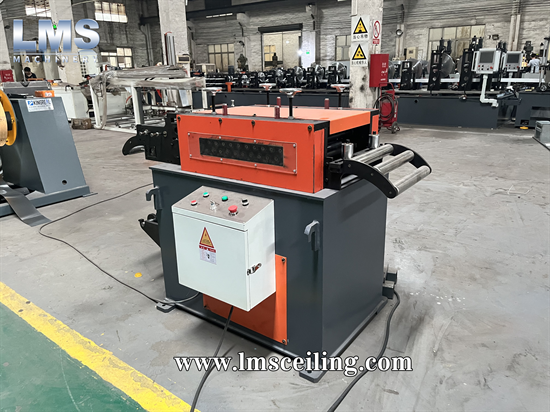

• Leveling & Feeding Unit

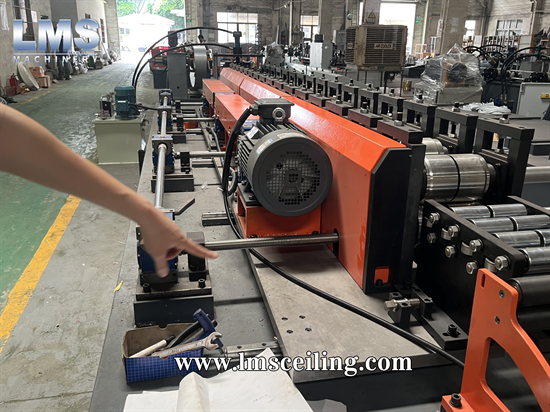

• Main Roll Forming Machine
• Hydraulic Flying Non-stop Cut-off
• Run-out Table
• PLC Control System

Technical Parameters of Linear Strip Ceiling Roll Forming Machine:

• Machine Type: High-precision Guide Column Machine
• Forming Stations: 14 Roll Forming Stations
• Max Speed: 0-30m/min
• Material Thickness: 0.6-0.9mm
• Applicable Materials: Galvanized Steel, Color Steel, Stainless Steel
• Roller Material: Cr12MoV / 40Cr
• Control System: PLC + Touch Screen

Main Components of Linear Strip Ceiling Machine:
1. Decoiler

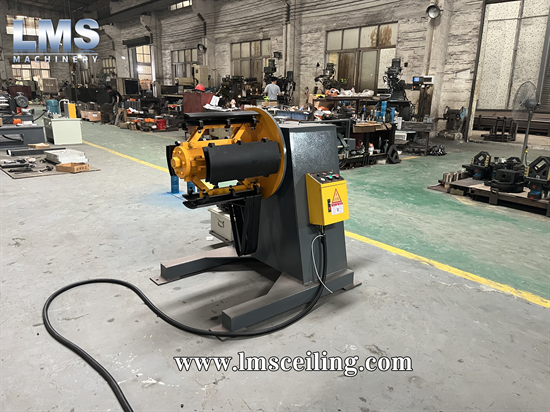

The linear ceiling machine is equipped with a manual expanding decoiler with 1.5-ton loading capacity, supporting manual feeding and expanding.

• Power: No
• Decoiler speed: < 25m/min
• Max. Material width: 400mm
• Max. Loading Capacity: 1.5 ton
• Material Inner diameter: φ480mm-φ520mm
• Max material external Diameter： <φ1200mm

2. Machine Frame

The frame of the linear strip ceiling roll forming machine adopts an integrated one‑piece welded steel structure. After precision planomiller processing, a 20‑mm thick steel plate is installed to ensure high dimensional accuracy, strong rigidity, and low deformation during long-term production.

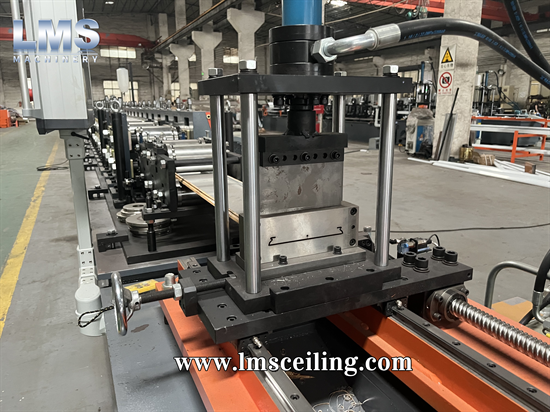

3. Hydraulic Bending & Cutting System

High Stability
High-rigidity frame ensures stable operation under heavy working pressure, low vibration, and minimal deformation, guaranteeing high processing accuracy and consistent product quality.

High Precision
The system realizes high-precision bending for various metal sheets. Users can easily set parameters on the PLC touch screen to achieve different bending shapes and meet precise processing requirements.

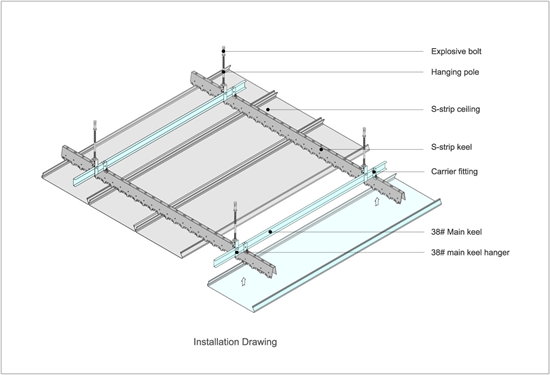

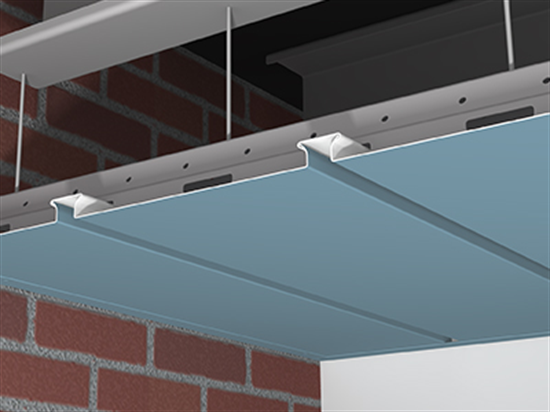

Linear Strip Ceiling Installation Guide:

Linear Strip Ceiling Applications:

Linear strip ceilings produced by LMS linear strip ceiling roll forming machine are widely used in modern commercial and public buildings:

• Airports, railway stations, and subway stations
• Shopping malls, supermarkets, and retail stores
• Office buildings, conference centers, and lobbies
• Hospitals, schools, and government buildings
• Hotels, restaurants, and entertainment venues

With excellent ventilation, easy installation, and modern linear appearance, linear strip ceilings are the ideal choice for interior ceiling decoration projects.

LMS provides both high-efficiency linear strip ceiling machines and matching linear strip ceiling carrier machines. Linear ceiling carriers are key components of the ceiling system, ensuring stable and reliable installation.

The advantage of LMS full-line solution is that the ceiling panel machine and carrier machine are perfectly coordinated, ensuring smooth production and high matching between panels and carriers. The finished linear ceiling system features a neat, modern, three-dimensional, and elegant appearance for various architectural projects.
