T Grid Making Machine for Lay in Lay on Ceiling Panel Installation

Description

T Grid Making Machine for Lay in Lay on Ceiling Panel Installation

LMS T Grid Making Machine serves as a supporting production line for lay-in metal ceilings. It features fully automatic roll forming, with punching and cutting completed in one single process.

This machine can produce main tees up to 3660mm in length, and cross tees in 600mm and 1200mm lengths. Length conversion is achieved via a quick-change system, while switching between inch and metric dimensions is realized through positioning pins.

With high efficiency, stable performance, and easy operation, our fully automatic T grid production line provides an ideal solution for manufacturing high-precision ceiling suspension components.

Parameters of Ceiling T Bar System:

Main T: 38x24mm, 32x24mm

Material: Galvanized Steel

Thickness: 0.3/0.35mm

Ceiling Roll Forming Machine Working procedure & required equipment:

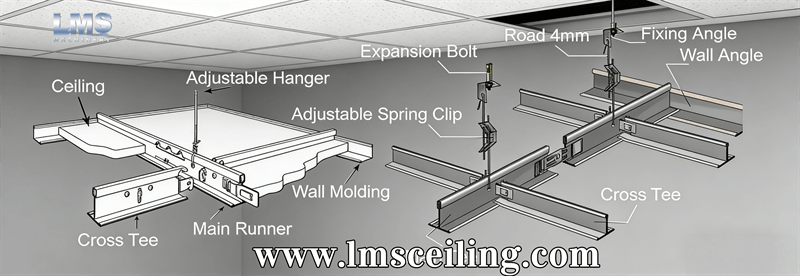

The complete Lay in metal ceiling hanging system includes three machines: Main T Grid, Cross T grid and wall angle.

1. Ceiling Main T Grid:1. Ceiling Main Tee Grid Machine:
2 x Decoiler – Roll Forming – Auto Punching & Cutting – Hydraulic System – Run Out Table

2. Ceiling Middle Cross Tee Grid Machine:
2 x Decoiler – Roll Forming – Auto Punching & Cutting – Hydraulic System – Run Out Table

3. Ceiling Wall Angle Machine:
Decoiler – Roll Forming – Auto Punching & Cutting – Hydraulic System – Run Out Table

Ceiling machine, ceiling T bar machine, ceiling grid machine, false ceiling machine

Details of each component of T Bar making machine:

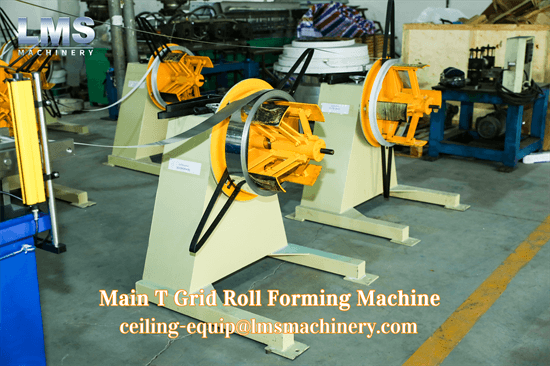

Uncoiler: 2set, manual decoiler, loading 1.5Ton

LMS T bar ceiling roll forming machine comes with two high-efficiency decoilers for galvanized and color-coated steel coils. Roller-driven design ensures accurate alignment with the main forming unit. We can customize decoiler inner/outer diameters and load capacity as per your requirements.

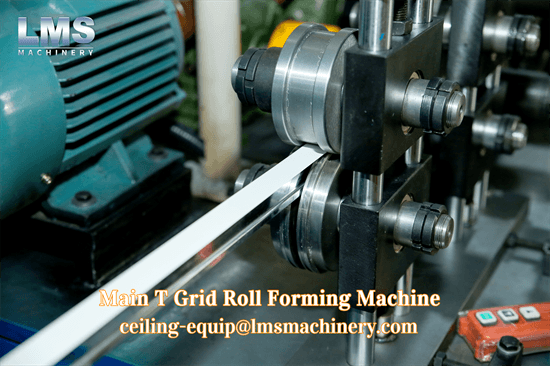

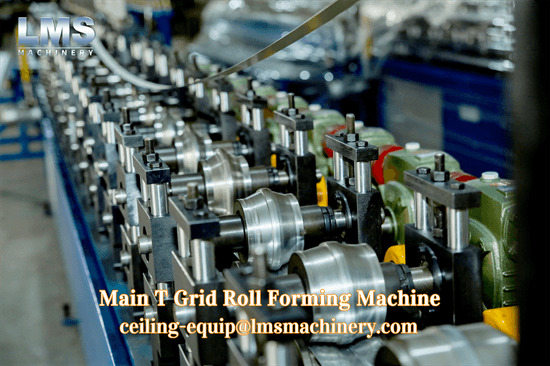

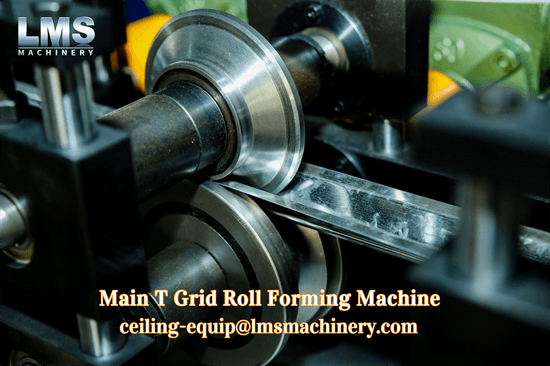

Roller: 18 Rows Material:Cr12 ,shaft diameter:Φ40mm

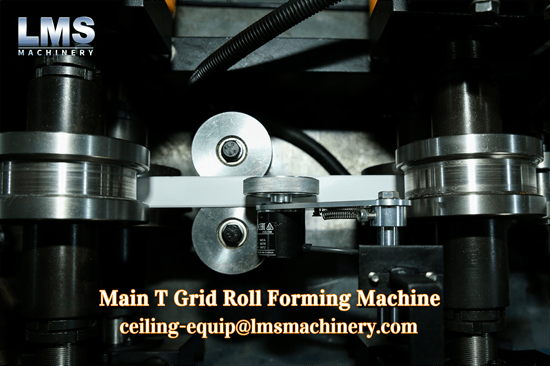

LMS T-bar ceiling roll forming machine rollers are made of Cr12 steel with hardness HRC 55–56°, ensuring forming accuracy within 0.05 mm. The main shaft uses heat-treated 45# steel for high stability and durability. Protective shields are available for enhanced safety. Production speed reaches up to 30 m/min, greatly improving efficiency.

Transmission: 5.5kw main motor with reducer. Gear transmission
Side plate: Thickness 25mm, grinding six-sided, high-precision boring from processing

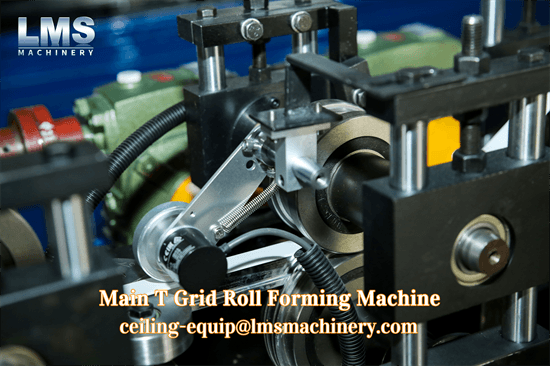

Feeding Positioning: Manual positioning, flexible adjustment at both ends
PLC: PLC programming controller

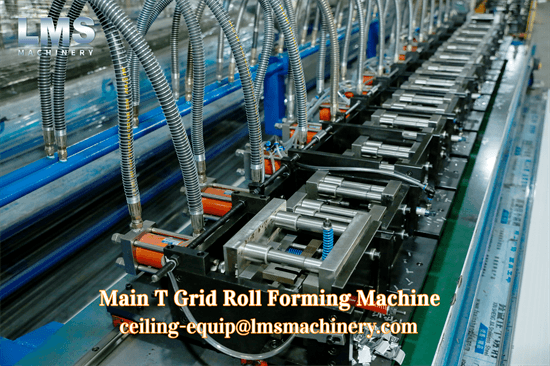

Stamping punch die: Material:10 Sets，SKD11

LMS ceiling T-grid roll forming machines can be fitted with multiple punching dies. Made of SKD11 steel with hardness HRC 58–60 and precision-machined, they ensure efficient and stable production.

The cutting system adopts flying shear for non-stop continuous cutting, with accuracy within 0.1 mm to meet strict production demands.
