Description

This FrameMac rolling punch wall angle machine is specially designed for producing ceiling wall angle / L-angle trim profiles for suspended ceiling systems. It integrates decoiler, continuous roll forming, servo punching, hydraulic cutting in one compact production line.

The machine feeds galvanized steel coil automatically, forms the L-shaped wall angle profile step by step through precision forming rollers, finishes pre-set notches and holes by servo punching unit, then cuts profiles to custom fixed length at high speed. All punching positions, hole patterns and finished lengths are adjustable via the HMI touch screen, to match different ceiling grid project requirements.

Key advantages

✅ Stable high-speed rolling punch continuous forming, consistent profile dimension, low tolerance

✅ Servo-controlled punching, clean burr-free holes and notches

✅ Easy recipe storage: save multiple wall angle mould programs for quick product switching

✅ Heavy-duty welded machine base, long service life for 24h continuous factory operation

✅ Safety protective mesh guard on forming section, compliant with EU machinery safety standards

✅ Compatible with GI, galvanized steel strip, common material thickness: 0.3–0.6mm

Typical finished product

L-type wall angle (wall trim, perimeter angle), widely used as the edge trim around ceiling perimeter, match T-grid ceiling system.

Standard configuration

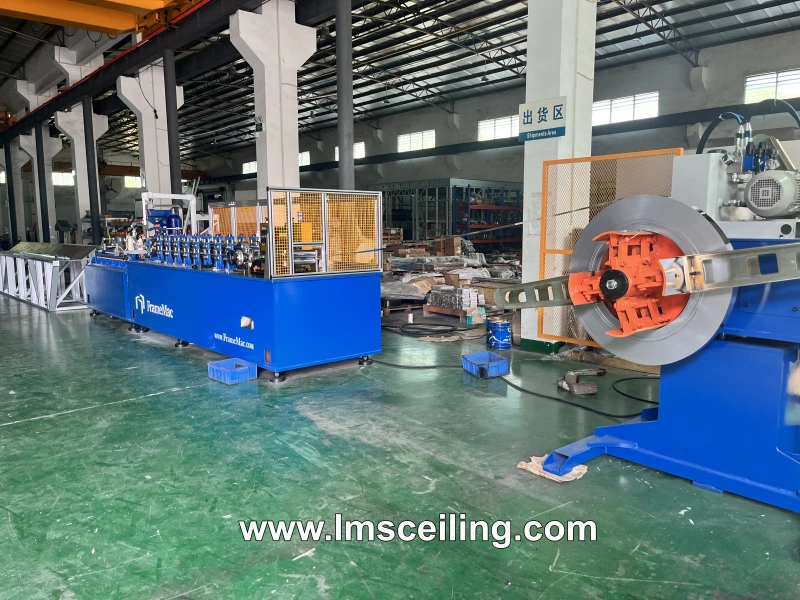

• Hydraulic decoiler (as shown in picture)

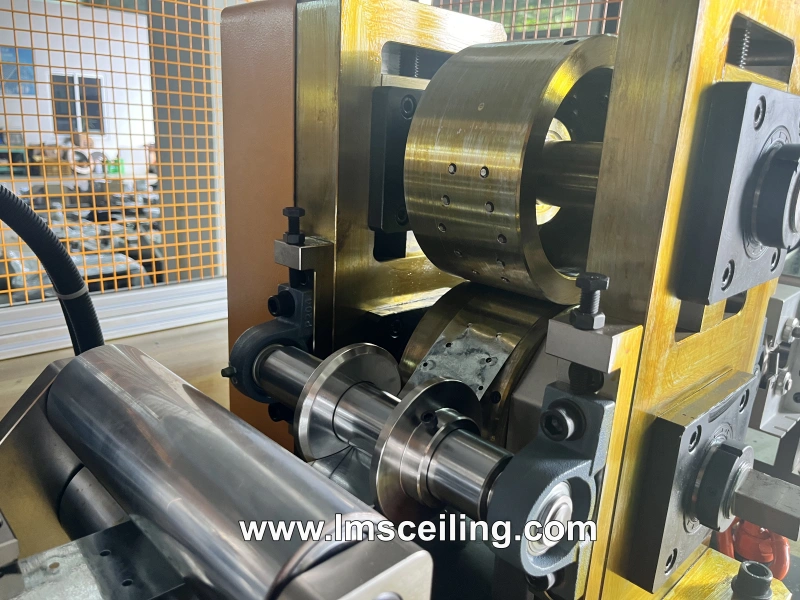

• Roll forming station with hardened forming rollers

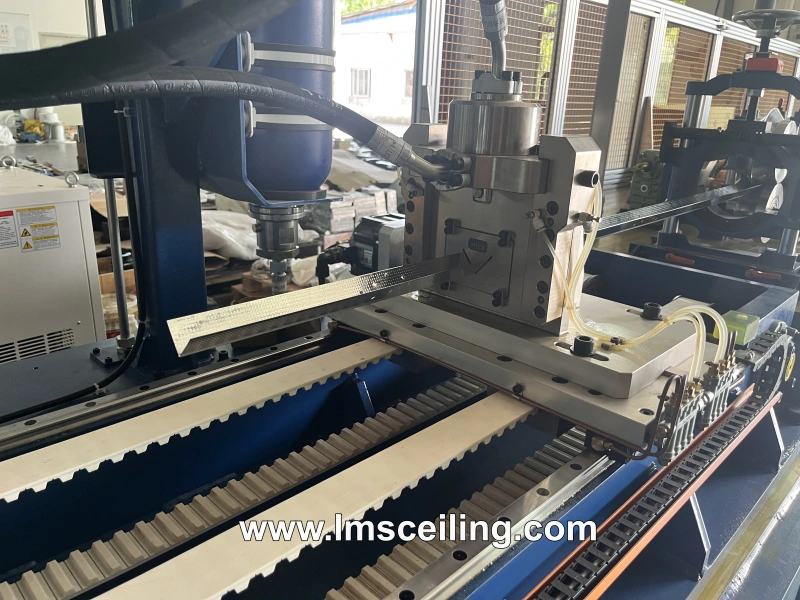

• Servo punching station
• Hydraulic flying cut-off unit
• PLC + HMI control system
• Safety protection guards

Technical overview

Production speed: adjustable, max up to 110 m/min Cutting tolerance: ±0.5mm Power supply: 380V / 400V 3-phase customisable

Contact us for profile drawing, test video and custom configuration quotation.
