LMS 600×600 False Ceiling Panel Making Machine – Fully Automatic Metal Ceiling Production Solution | Cassette Ceiling Machine Manufacturer
As a professional metal ceiling processing equipment manufacturer, LMS provides high-efficiency, high-precision 600×600 false ceiling panel making machine for global customers. This fully automatic metal ceiling production line is designed for mass production of decorative metal ceiling tiles (clip-in/lay-in type), widely used in commercial buildings, offices, malls, hotels, hospitals and residential buildings. It integrates uncoiling to finished product discharging in one line, reducing labor costs and boosting production efficiency.
Product Highlights of LMS 600×600 Ceiling Panel Machine:
- Fully Automatic Operation: 1-2 operators only for monitoring (decoiling → leveling → NC punching → corner cutting → bending), labor cost saved by 70%+.
- High Precision (±0.1mm): Dual leveling process eliminates material stress, ensuring flat, non-deformable ceiling panels with consistent size.
- Fast Production Speed: 5-6 pieces/min (including perforation), 3-5x faster than semi-automatic machines for large-batch orders.
- Flexible & Customizable: Switch between clip-in/lay-in panels by changing tools; customize material thickness (0.3-0.8mm), hole size (Ø1.5-2.0mm) and panel size (500×500mm/600×1200mm).
Technical Parameters of LMS Cassette Ceiling Machine:
- Material: Aluminum Coil / Steel Coil (corrosion-resistant, easy processing)
- Material Thickness: 0.4 – 0.55 MM (customizable 0.3-0.8mm)
- Punching Hole: Ø 1.8 MM (size/shape/density customizable: Ø1.5mm/Ø2.0mm)
- Profile Size: 600 × 600 MM (customizable: 500×500mm/600×1200mm)
- Control System: Advanced NC (Numerical Control) + Automatic Control System
Machine Structure & Production Process:

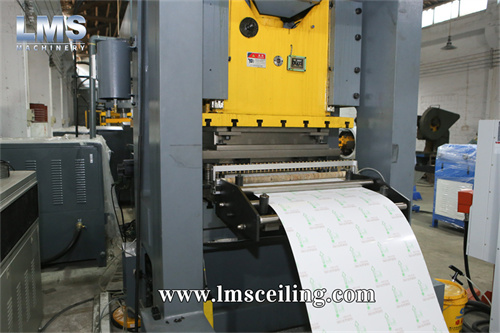

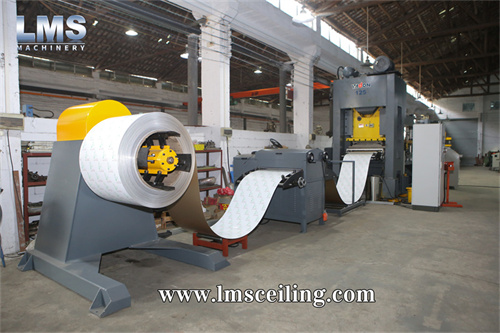

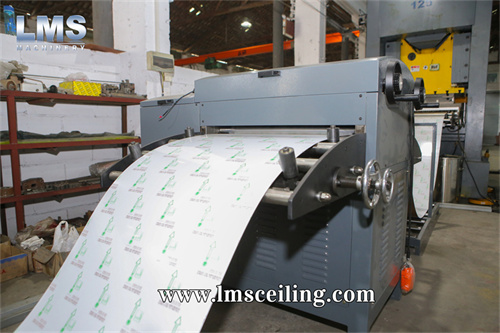

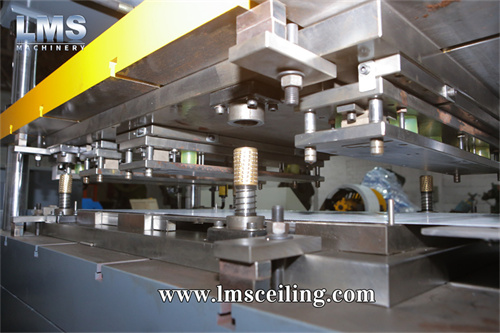

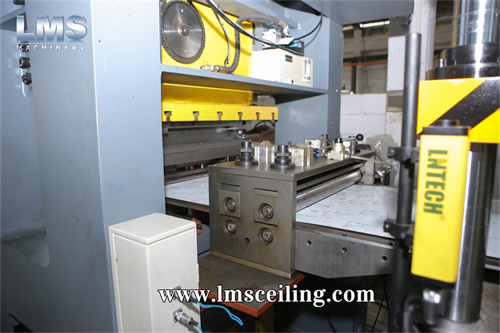

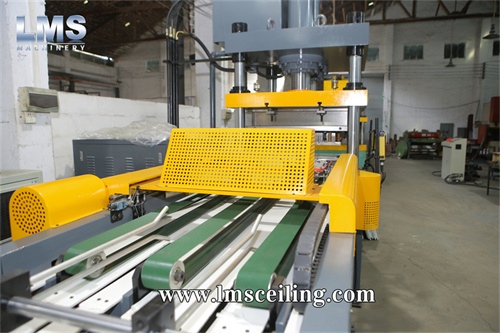

Process: Decoiler → #1 Leveling Machine → NC Feeding Punch Press → Oil Press (Corner Cutting) → #2 Leveling Machine → Flipper & Manipulator → Oil Press (Bending) → Finished Product Discharging

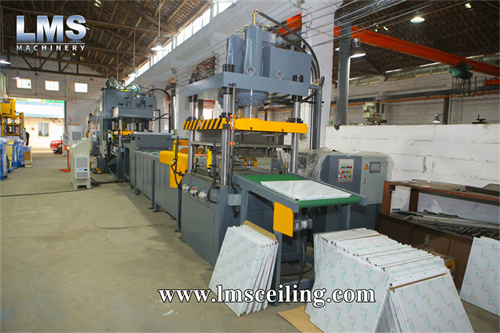

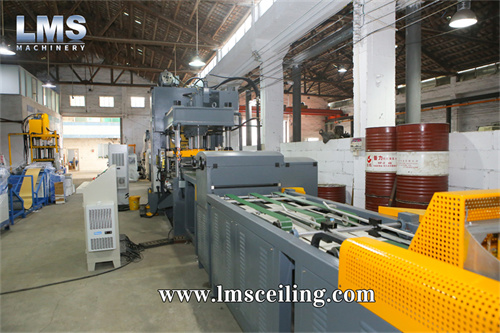

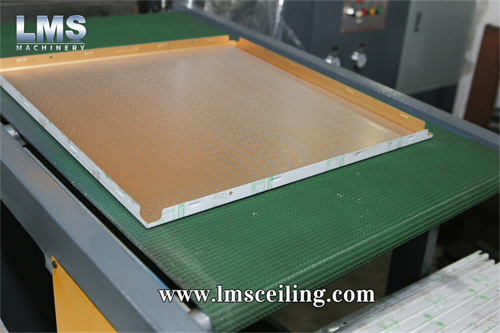

Machine Photos:

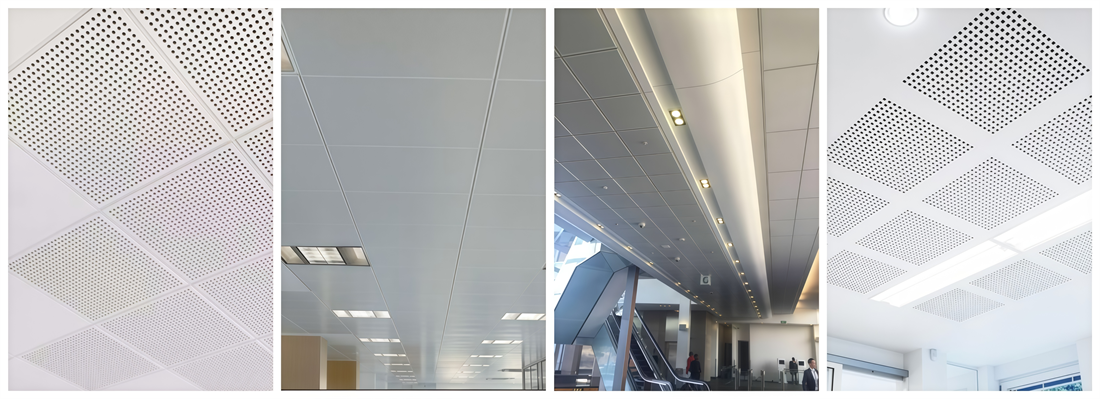

Installation & Application:
Customization Service:
- Custom profile design (500×500mm/600×1200mm/600×600mm)
- Custom online punching (hole size/shape/density)
- Full automatic/semi-automatic line customization
- Custom rolls, moulds & old machine upgrading
After-Sale Service:
- Free on-site installation, commissioning & operation training
- 1-year whole machine warranty (core parts 2-year warranty)
- 24/7 online technical support
- Lifetime spare parts supply & maintenance service
