LMS Baffle Ceiling Machine Description

The LMS Baffle Ceiling Roll Forming Machine is a high-precision, fully automatic solution for acoustic metal baffle ceilings. Equipped with an imported rotary encoder, it ensures accurate side length adjustment and consistent quality.

Our production line excels in efficiency with a 1-minute specification changeover via intelligent PLC control. LMS exports 100mm, 200mm, 300mm height machines and custom lines to Russia, Mexico, Kazakhstan and beyond, supported by 24/7 technical service and on-site installation.

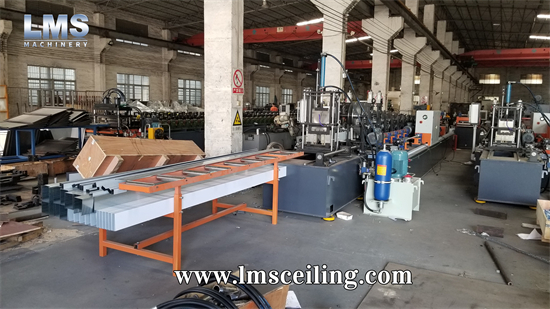

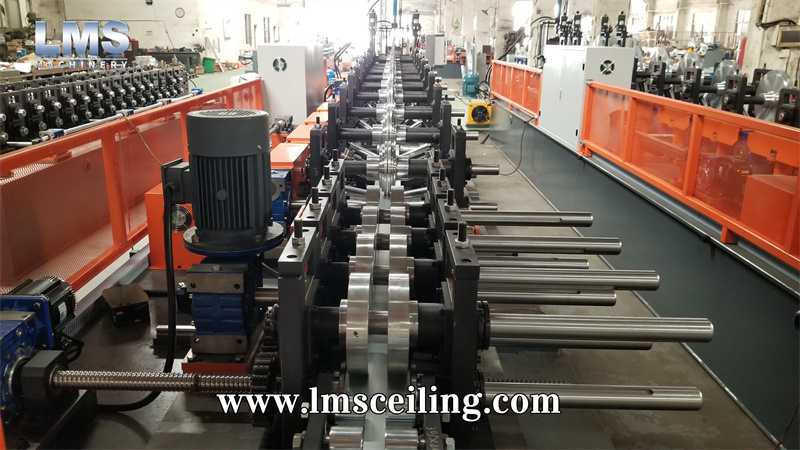

Machine Photos:

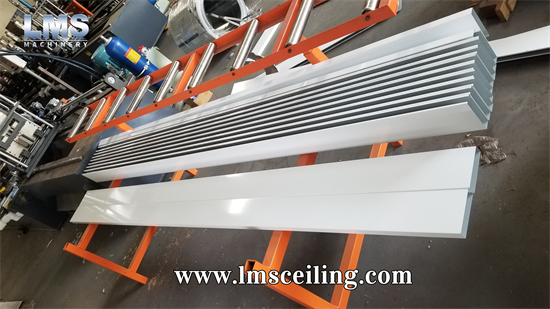

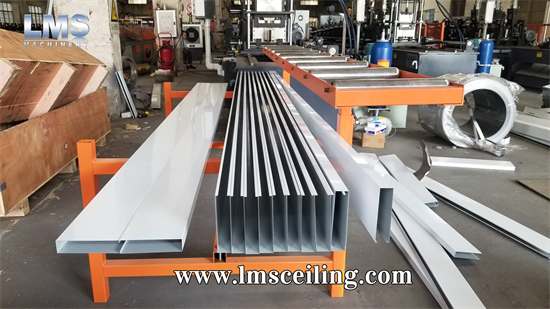

Finished Products:

Machine Structure & Working Flow:

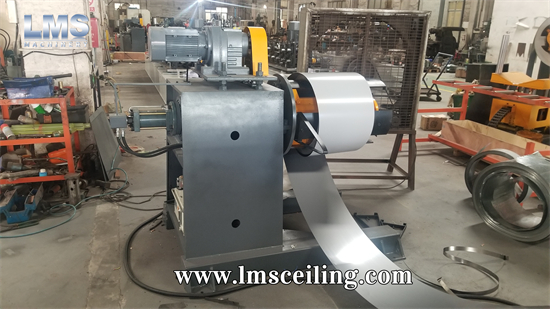

• Hydraulic Uncoiler

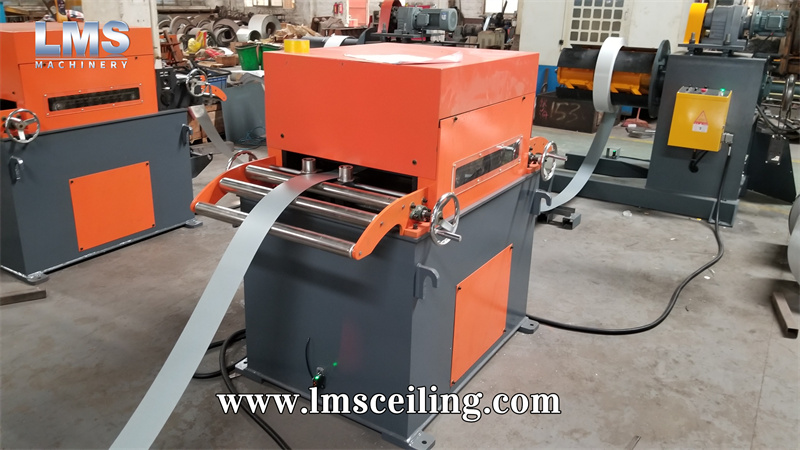

• Leveling & Feeding Unit

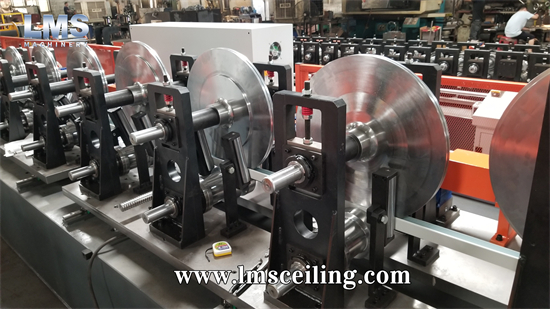

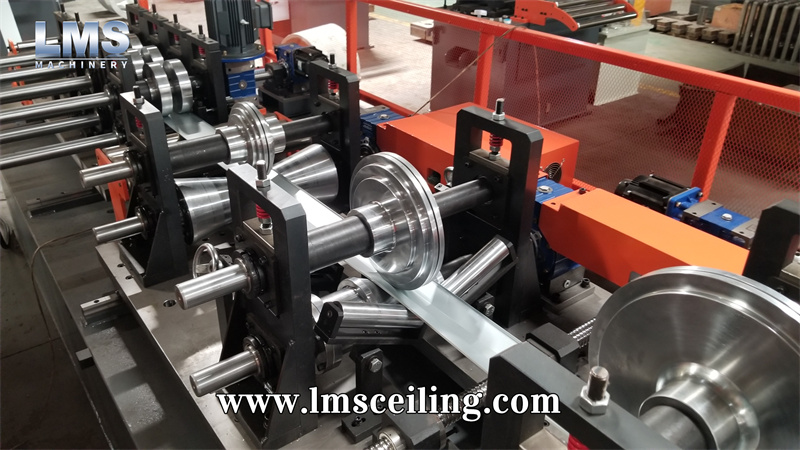

• Main Roll Forming Machine
• Hydraulic Flying Non-stop Cut-off
• Run-out Table
• PLC Control System

Technical Parameters:

• Machine Type: High-precision Guide Column Machine
• Forming Stations: 14 Roll Forming Stations
• Max Speed: 0-30m/min
• Material Thickness: 0.6-0.9mm
• Applicable Materials: Galvanized Steel, Color Steel, Stainless Steel
• Roller Material: Cr12MoV / 40Cr

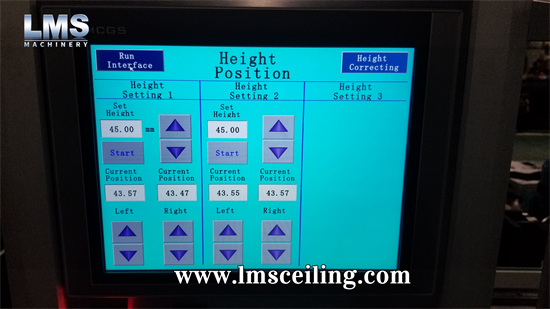

• Control System: PLC + Touch Screen

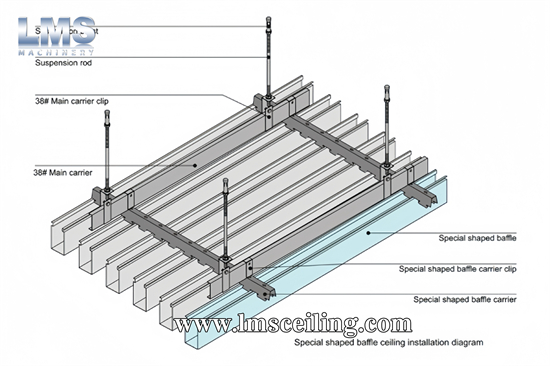

Installation Guide:

Application

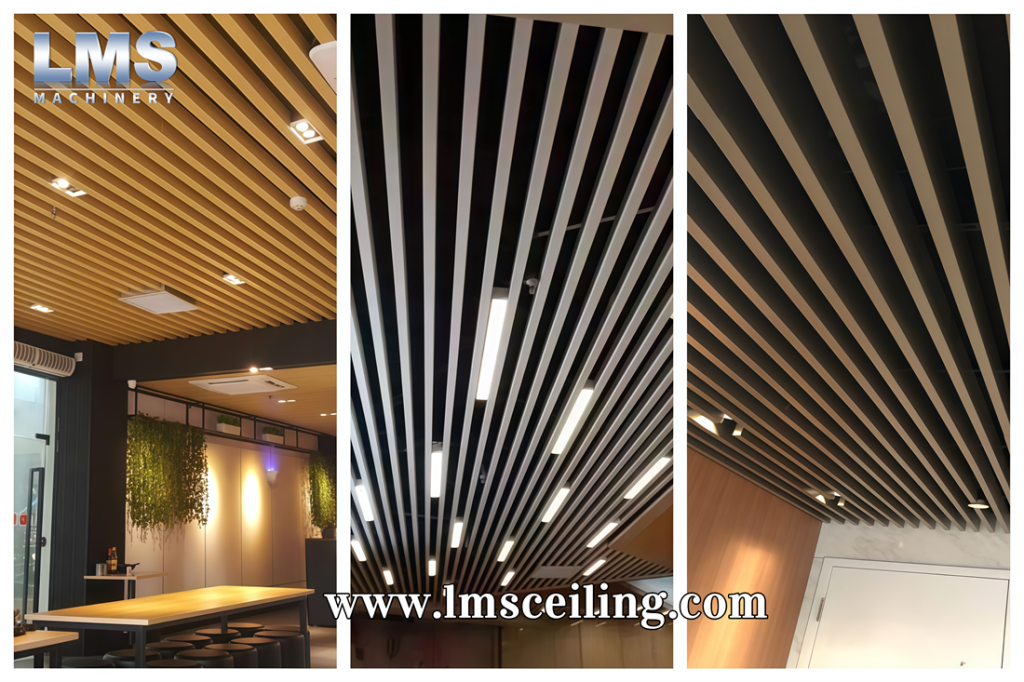

Our baffle ceiling machines produce high-quality acoustic slats widely used in airports, metro stations, shopping malls, office buildings, schools and commercial centers, providing excellent sound absorption and modern aesthetics.

Custom Service

• Custom Profile Sizes (100mm, 200mm, 300mm or special designs)
• Servo Automatic Variable Specification System
• Economical or Full-Automatic Line Configuration
• Feeding Trolley Integration

After-Sale Service

• 24/7 Online Professional Technical Support
• On-site Installation, Commissioning & Training
• Real-time Production Progress Feedback
• Factory Visit & Machine Demonstration
• Lifetime Supply of Spare Parts
